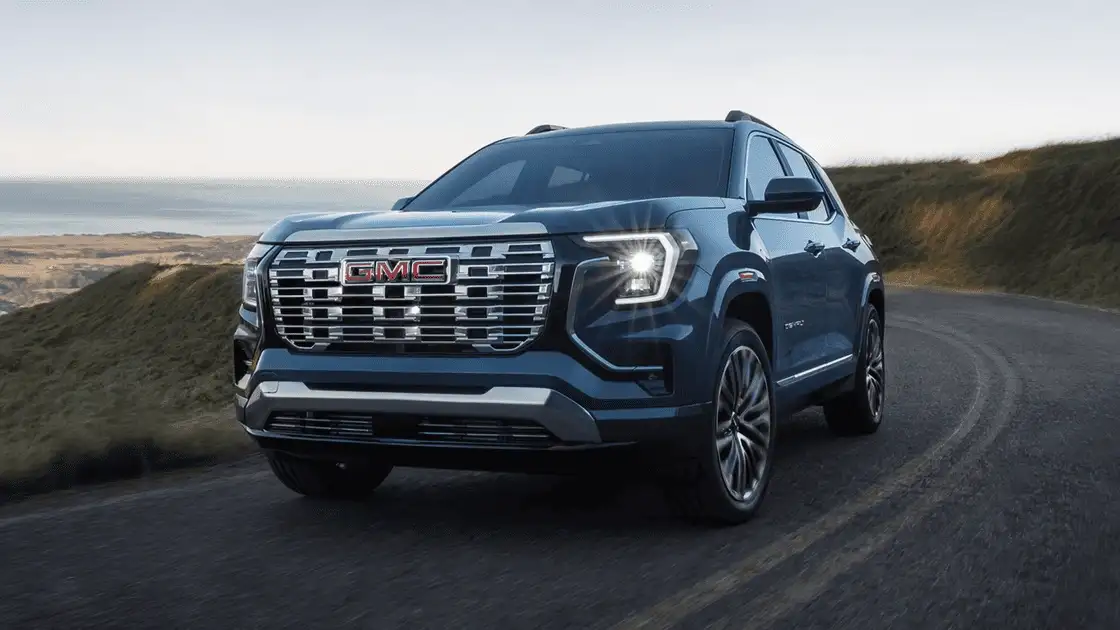

2026 GMC Terrain Denali near Ruth, NC
The 2026 GMC Terrain Denali expands the Terrain lineup with a trim focused on premium chassis tuning, standard all-wheel drive capability, refined suspension components, and advanced drivetrain engineering. GMC adds the Denali trim to the 2026 Terrain lineup alongside new Denali-exclusive exterior colors, including Downpour Metallic and Glacier White Tricoat. The Denali configuration combines compact SUV dimensions with upgraded ride control systems, a turbocharged powertrain, larger wheel equipment, and a premium suspension package designed specifically for this trim level.
The 2026 GMC Terrain Denali uses a 1.5L turbocharged 4-cylinder engine paired exclusively with all-wheel drive and an 8-speed automatic transmission. The vehicle also receives Smart Frequency Damper Technology, a four-link independent rear suspension, four-wheel disc brakes with E-boost ABS and ESC, and 20-inch Denali wheels. These specifications position the 2026 GMC Terrain Denali as the most refined Terrain trim within the 2026 model range.
Turbocharged Engine Specifications and Torque Output
The 2026 GMC Terrain Denali uses a 1.5L turbocharged 4-cylinder engine featuring direct fuel injection, dual overhead camshafts, and four valves per cylinder. The engine uses a cast-aluminum block and cast-aluminum cylinder head configuration. Bore and stroke measurements are 2.9 x 3.4 inches, or 74.0 mm by 86.6 mm.
In the AWD Denali configuration, the engine produces 175 horsepower at 5,800 rpm and 203 lb-ft of torque between 2,000 and 4,000 rpm. The turbocharged setup supports low and mid-range torque delivery across a broad rpm range, helping the 2026 GMC Terrain Denali maintain responsive acceleration during highway merging, passing maneuvers, and uphill driving conditions.
The direct injection fuel delivery system contributes to combustion efficiency and power consistency. The engine configuration also supports the 2026 GMC Terrain Denali’s EPA-estimated fuel economy ratings of 24 mpg city, 26 mpg highway, and 25 mpg combined in AWD form.
Eight-Speed Automatic Transmission and AWD Integration
The 2026 GMC Terrain Denali comes standard with an 8-speed automatic transmission. Unlike the front-wheel drive Terrain models that use a continuously variable transmission, the Denali AWD configuration uses a conventional stepped automatic transmission for more defined gear transitions and torque distribution.
The AWD system works with a 3.47 axle ratio. This drivetrain setup supports traction management across varying road surfaces while maintaining efficient highway operation. The transmission calibration and torque delivery characteristics are designed to complement the turbocharged engine’s available 203 lb-ft torque output.
The all-wheel drive system also contributes to the 2026 GMC Terrain Denali’s maximum trailering capacity of 1,500 pounds when properly equipped with the required trailering hardware and ball hitch setup.
Premium Suspension Technology Exclusive to Denali
One of the most significant technical distinctions in the 2026 GMC Terrain Denali is its premium suspension configuration. The front suspension uses a MacPherson® strut design with Smart Frequency Damper Technology. This setup differs from the standard suspension systems used on lower Terrain trims.
Smart Frequency Damper Technology is engineered to improve ride control by adapting damping characteristics to changing road surfaces and suspension movement frequencies. The system helps reduce excessive body movement while maintaining ride stability during highway driving and uneven pavement conditions.
The rear suspension uses a four-link independent design. Independent rear suspension systems help improve ride quality by allowing wheel movement to react separately to road surface changes. This configuration also contributes to improved handling stability and passenger comfort during cornering and road transitions.
The Denali trim also receives premium suspension tuning as standard equipment. GMC specifically identifies premium suspension hardware as standard for the Denali model within the 2026 Terrain lineup.
Steering Response and Braking System Configuration
The 2026 GMC Terrain Denali uses a dual-pinion rack electric power steering system. Electric power steering assists with steering precision while reducing the mechanical load associated with hydraulic steering systems. The dual-pinion configuration supports steering responsiveness and directional stability during low-speed and highway driving.
The 2026 GMC Terrain Denali maintains a curb-to-curb turning diameter of 37.1 feet when equipped with its standard 20-inch wheels. This turning radius supports maneuverability in parking areas, urban driving conditions, and confined turning situations.
The braking system uses four-wheel disc brakes with E-boost ABS and electronic stability control integration. Front brake rotors measure 300 x 26 mm and use a ventilated design. Rear brake rotors measure 288 x 12 mm and use a solid rotor configuration. The brake system calibration works alongside the electronic stability control system to support directional control during braking and low-traction conditions.
Denali Exterior Dimensions and Structural Measurements
The 2026 GMC Terrain Denali AWD measures 181.1 inches in overall length and 74.5 inches in overall width. Overall height measures 66.1 inches. The wheelbase measures 107.48 inches.
Front track width measures 63.8 inches, while rear track width measures 63.9 inches. These dimensions support overall vehicle stability and cabin packaging efficiency.
The 2026 GMC Terrain Denali provides 7.7 inches of minimum ground clearance. Approach angle measures 18.1 degrees, departure angle measures 22.5 degrees, and ramp breakover angle measures 18.4 degrees. These measurements support moderate terrain clearance capability while maintaining the ride characteristics expected from a premium compact SUV configuration.
The Denali trim also receives exclusive exterior finishes for the 2026 model year, including Downpour Metallic and Glacier White Tricoat.
Twenty-Inch Denali Wheels and Tire Configuration
The 2026 GMC Terrain Denali receives standard 20-inch wheels designed specifically for the Denali trim. This wheel configuration differs from the 17-inch and 19-inch wheel options available on other Terrain models.
The larger wheel setup contributes to the Denali trim’s exterior proportions and handling calibration. Tire sizing for the Terrain lineup includes 17-inch all-weather tires, 17-inch all-terrain tires, 19-inch tire configurations, and the Denali-specific 20-inch setup.
The wheel and tire package works together with the premium suspension system to support ride stability, steering response, and overall chassis balance.

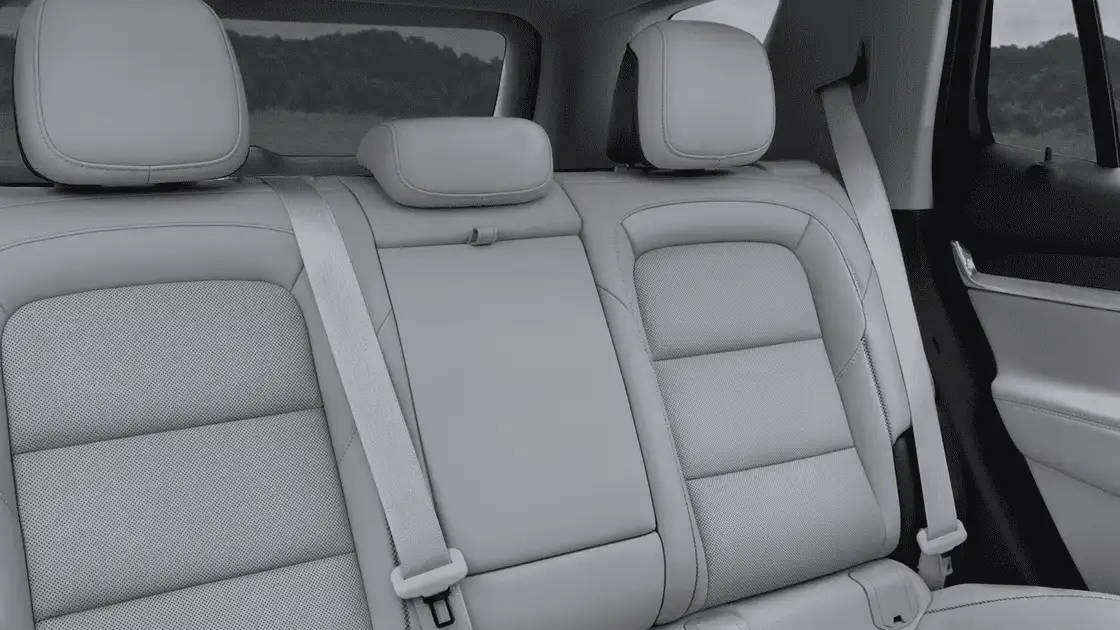

Passenger Space and Interior Dimensions
The 2026 GMC Terrain Denali seats five occupants using a 2/3 front and rear seating arrangement. The cabin dimensions prioritize passenger space efficiency while maintaining the compact exterior footprint associated with the Terrain platform.
Front-row headroom measures 40.0 inches. With the available sunroof configuration, front-row headroom measures 38.2 inches. Second-row headroom measures 39.2 inches, or 37.8 inches with the sunroof configuration.
Front shoulder room measures 57.7 inches, while second-row shoulder room measures 55.7 inches. The front hip room measures 55.2 inches, and the second-row hip room measures 50.8 inches.
Front-row legroom measures 40.6 inches. Second-row legroom measures 39.2 inches. These measurements support passenger comfort across both seating rows without requiring full-size SUV dimensions.
Cargo Capacity and Interior Utility Measurements
The 2026 GMC Terrain Denali provides 29.8 cubic feet of cargo volume behind the second-row seating area. With the second-row seats folded, cargo volume expands to 63.5 cubic feet behind the front seating area.
The cargo dimensions support transportation of luggage, equipment, cargo containers, and larger household items while preserving passenger seating flexibility. Cargo and load capacity remain dependent on total weight distribution and passenger occupancy.
The compact SUV dimensions combined with the available cargo space give the 2026 GMC Terrain Denali practical utility without significantly increasing overall vehicle size.
Fuel Capacity, Weight Ratings, and Vehicle Mass
The 2026 GMC Terrain Denali AWD uses an approximate 15.6-gallon fuel tank. Combined with the EPA-estimated 25 mpg combined fuel economy rating, the fuel system supports extended driving range between refueling intervals.
The Denali AWD curb weight measures 3,728 pounds, or 1,691 kilograms. Gross vehicle weight rating measures 4,850 pounds, or 2,200 kilograms.
Chassis Control Systems and Stability Engineering
The 2026 GMC Terrain Denali integrates multiple chassis control systems designed to support vehicle stability and traction management. Electronic stability control operates alongside the AWD system, electric power steering, and braking system to assist directional control during varying road conditions.
The E-boost braking system supports brake responsiveness, while the AWD configuration contributes to traction distribution during acceleration and cornering situations. The independent rear suspension and Smart Frequency Damper Technology also assist in reducing excessive body movement during directional changes and uneven road surfaces.
Schedule a Test Ride at Friendship Chevrolet of Forest City of Forest City
Drivers interested in examining the technical specifications and premium chassis engineering of the 2026 GMC Terrain Denali can schedule a test drive at Friendship Chevrolet of Forest City of Forest City near Ruth, NC. A test drive provides the opportunity to evaluate the 203 lb-ft torque output, 8-speed automatic transmission operation, and standard AWD traction system during daily driving conditions. Visitors can also examine the Denali-exclusive suspension tuning, Smart Frequency Damper Technology, and 20-inch wheel configuration in greater detail. The 2026 GMC Terrain Denali’s interior dimensions, cargo capacity, and passenger space measurements can also be reviewed during an in-person visit. Contact our team to arrange a convenient appointment and experience the engineering and technical features included in the 2026 GMC Terrain Denali.
